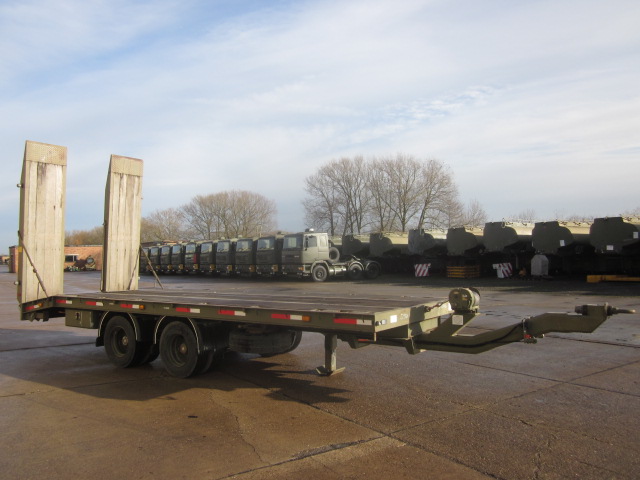

King draw bar plant trailer. This trailer is a twin axle close coupled platform construction with air suspension, two line load sensed braking with ABS.

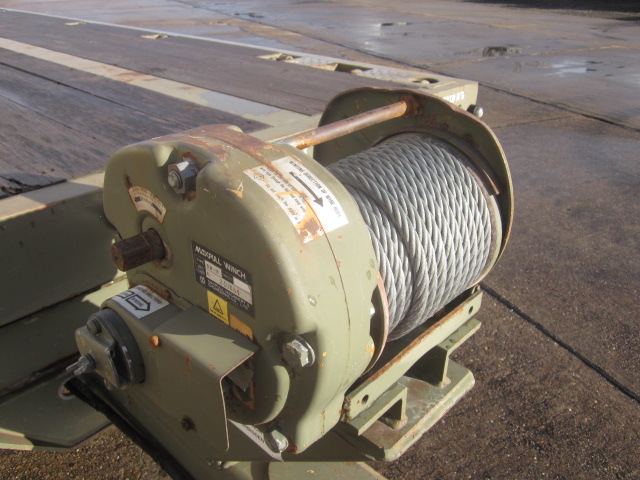

A manually operated 5,000 kg recovery winch is fitted to the front of the trailer, along with manual operated spring loaded ramps. Trailers are fitted with ISO container twist locks, shackles and loading rings for load security.
The trailer suspension comprises two air bags and two shock absorbers mounted on each of the two SAF axles.
Ride height of the trailer is adjustable by increasing/decreasing the amount of air within each air bag. Adjustment is carried out via a suspension raise/lower valve mounted on the trailer.
Maximum gross trailer weight: 18,000 kg's
Maximum permissible axle weight: 9,000 kg's
Maximum permissible payload 12,650 kg's

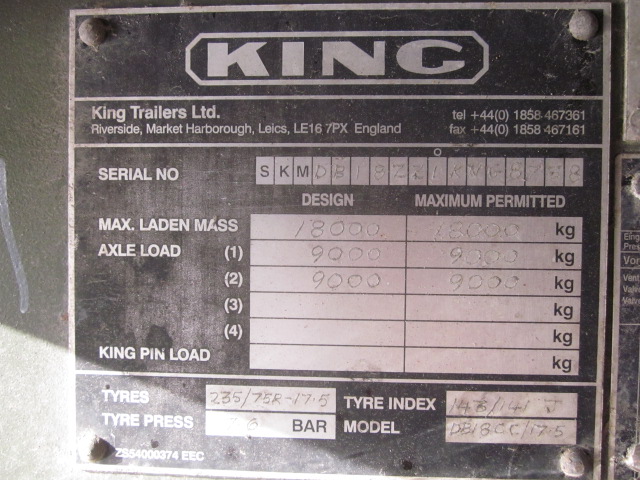

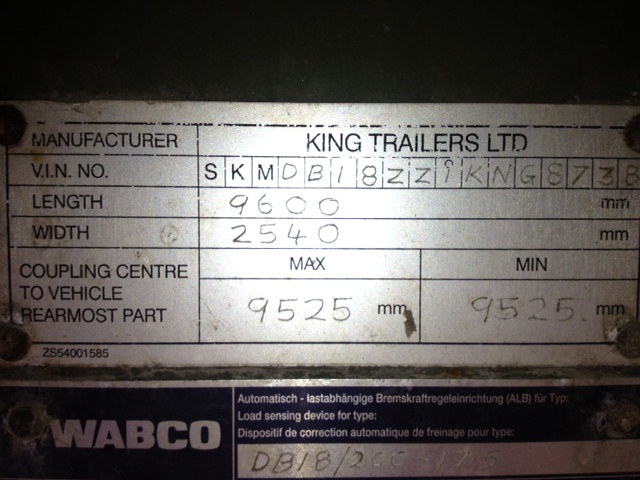

Dims on plate overall
Plus flat bed dims 6.10x plus slope 1.12 m Ramp length 3 m
7 lash points per side
Twist locks for 20 ft cont
Deck Heigh from ground 90cm
