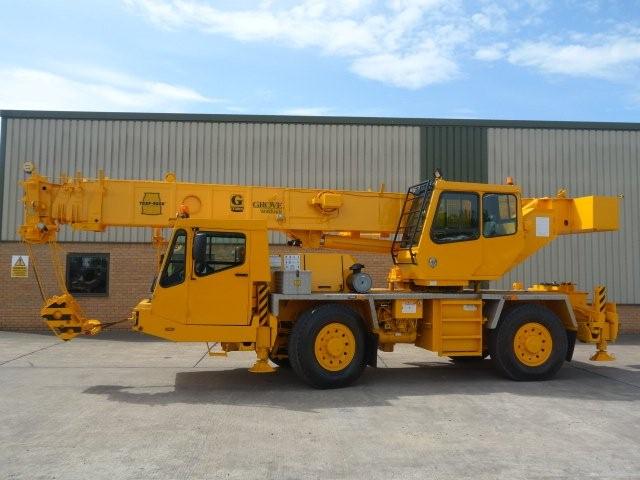

Grove AT635E 35 ton all terrain crane. This crane is direct from the military in good condition having been well maintained.
The unit has recently been serviced and repainted ready for use. 16,896 kilometres, 6,689 hours.
Crane is also supplied with a fly jib.
Maximum speed 72Kph (45mph)
Maximum turning radius: 12m (39.37 ft) wall to wall
Maximum gradeability: 65%
Front: Duplex wedge - Air
Rear: Simplex wedge air
4 section fully powered 8.51m to 27.44m (27.92ft to 90.02ft)
Optional extensions 7.6m (25ft) fixed length swingaway
Grove model HO-15F-20G
Drum diameter 12" (30.5cm)
Drum length 20" (51cm)
Cable size 14mm
Useable: 365ft (111m)
Stowable: 460ft (140m)
Type: Double box housing with beam and vertical jacks
Extended length: 6m (19.68ft)
Retracted length: 2.5m (8ft2")
Weigh load system:PAT DS350
