Iveco Trakker 6x6 Dando 12.8 Drilling Rig - MoD Ref: 50282

Details

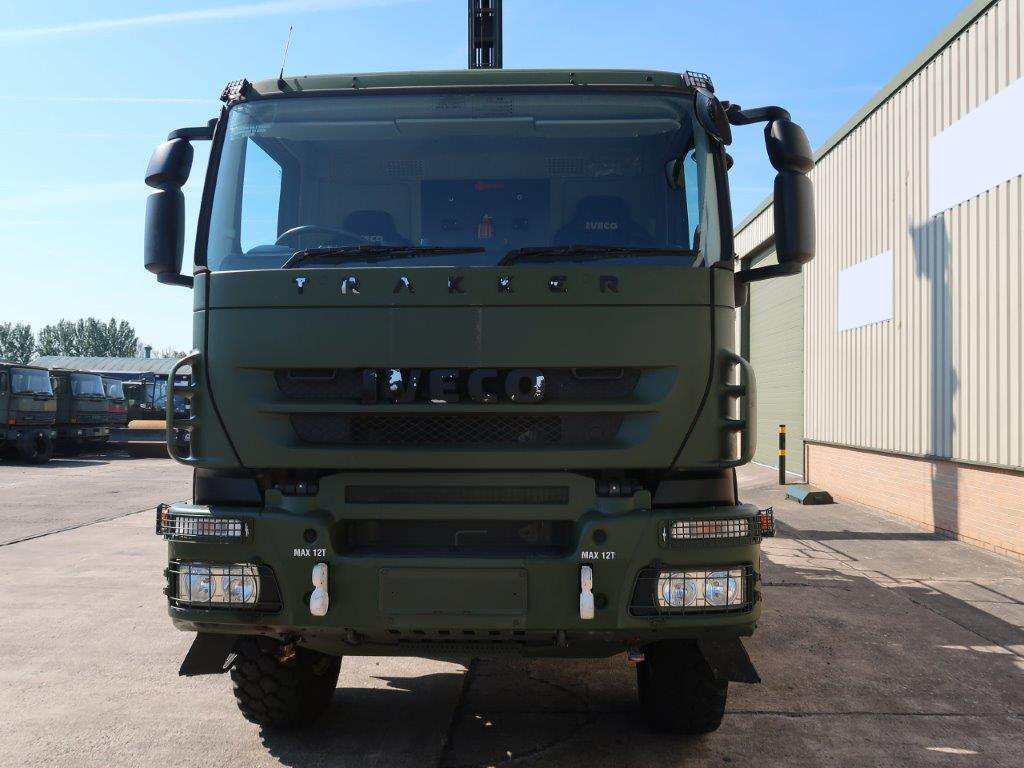

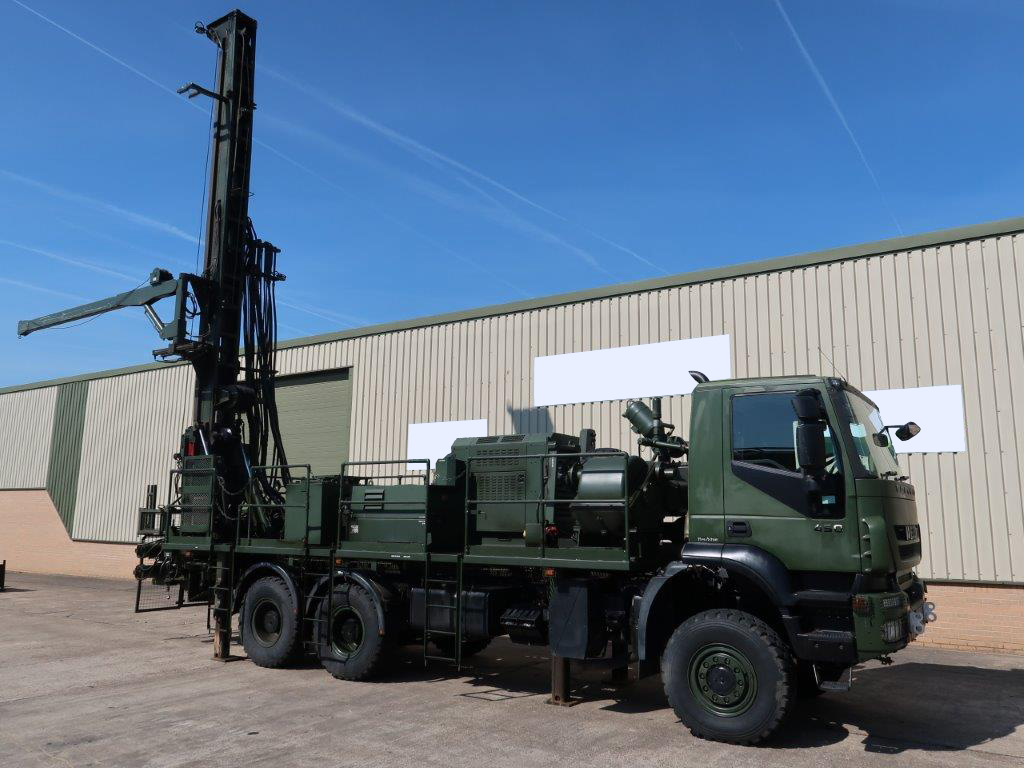

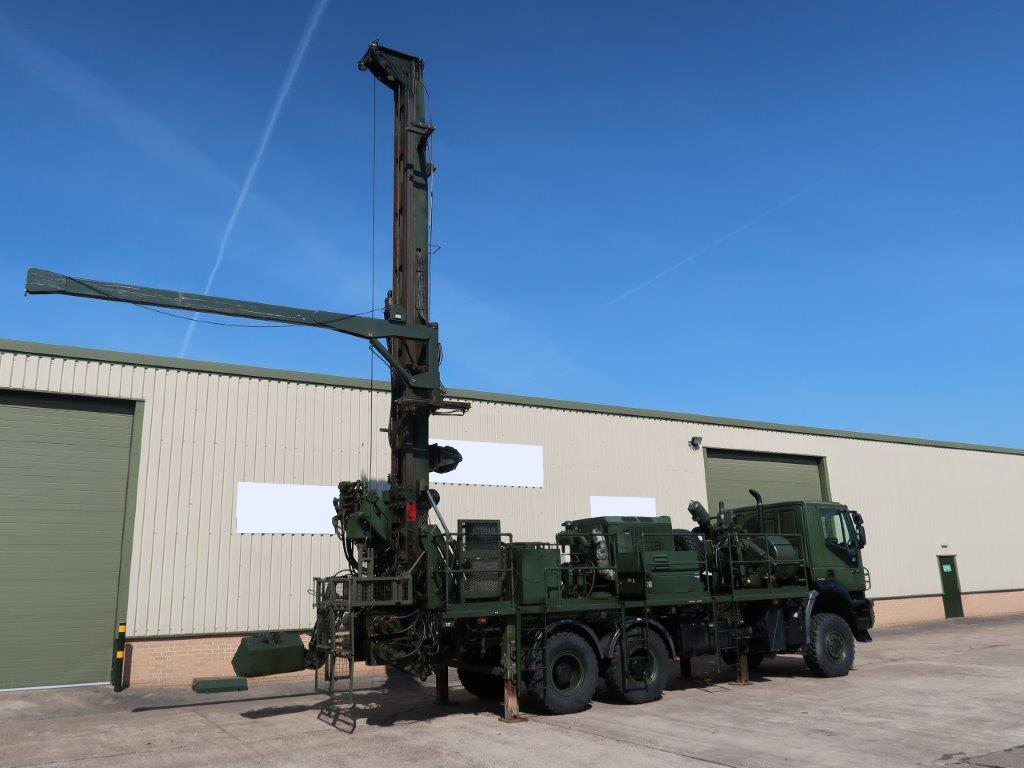

Iveco Trakker 6x6 450 Water Well Drilling Rig

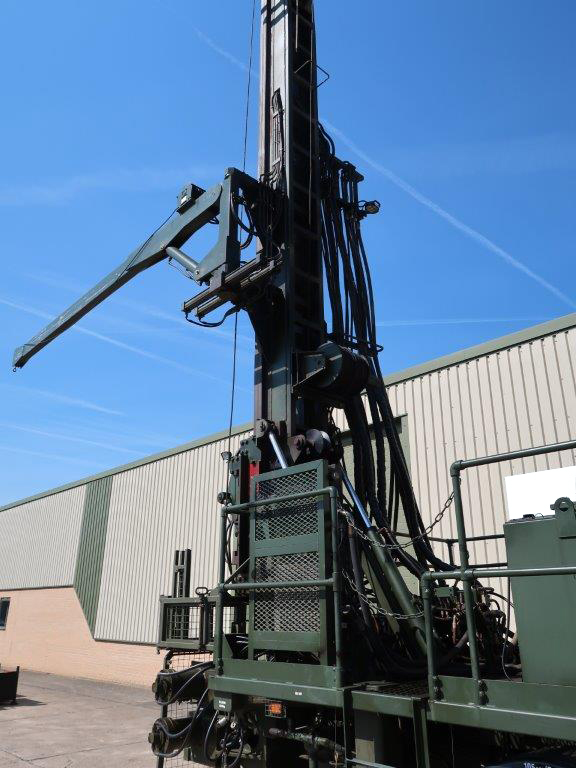

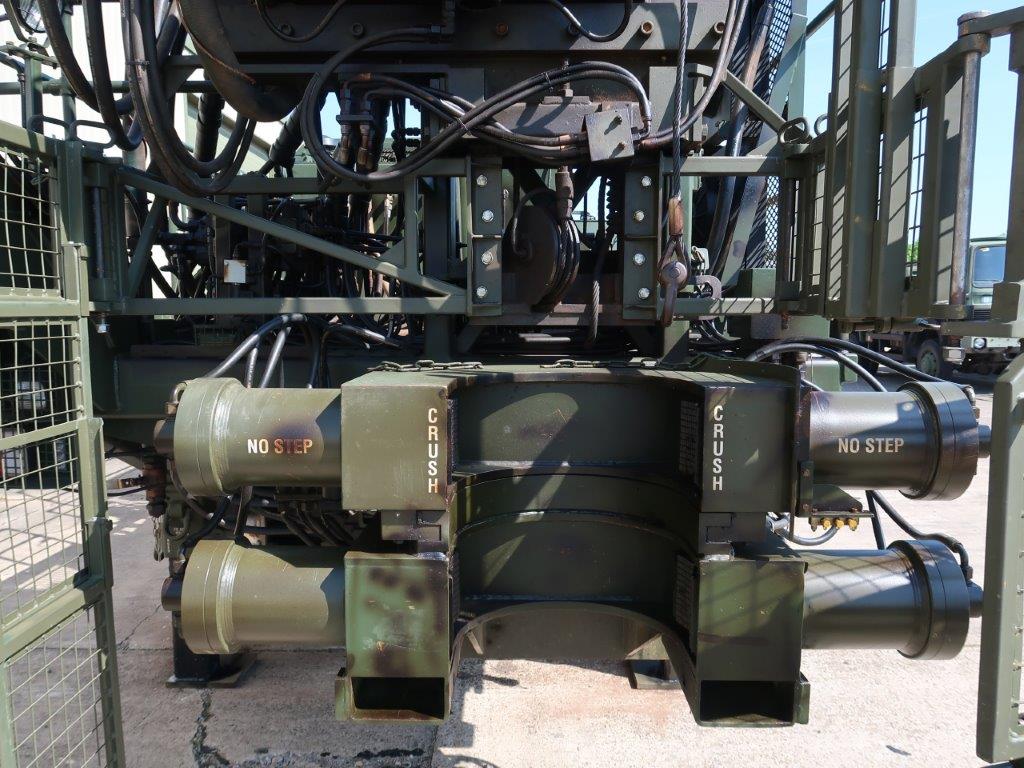

The truck comes mounted with a Dando Watertec 12.8 drilling rig, capable to drill to a 300 meter depth with a borehole diameter of 300 mm or a 400 mm borehole to a shallower depth, with a variety of drilling methods (rotary with air, rotary percussion with air with down the hole hammers, and rotary with mud flush auger.

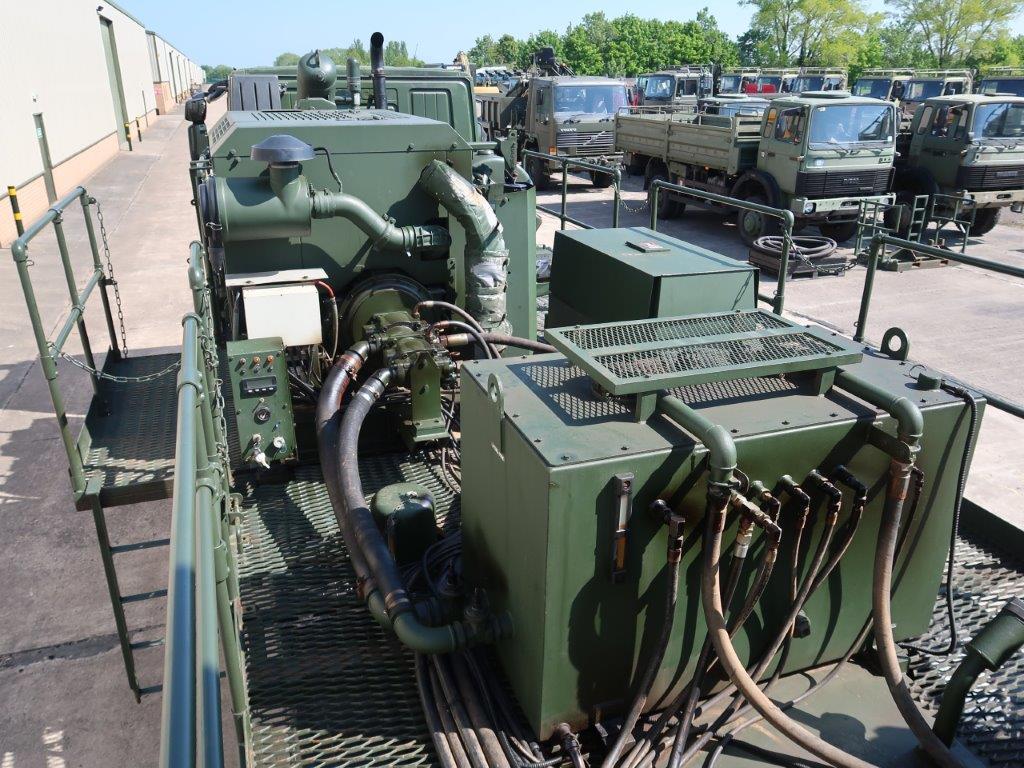

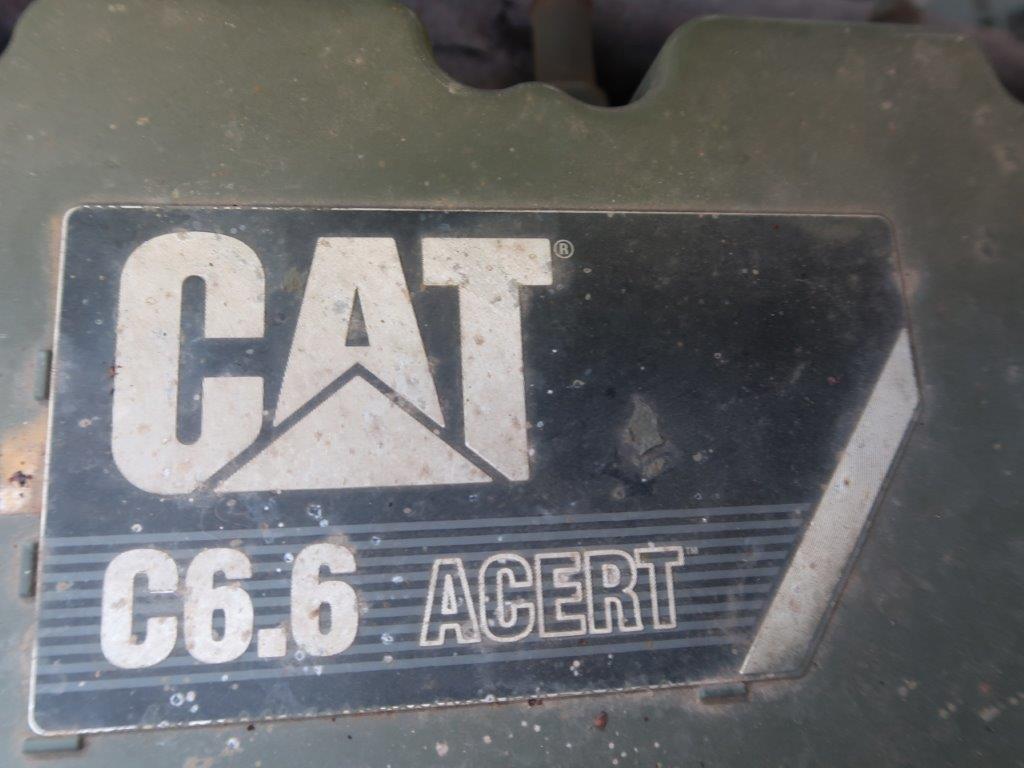

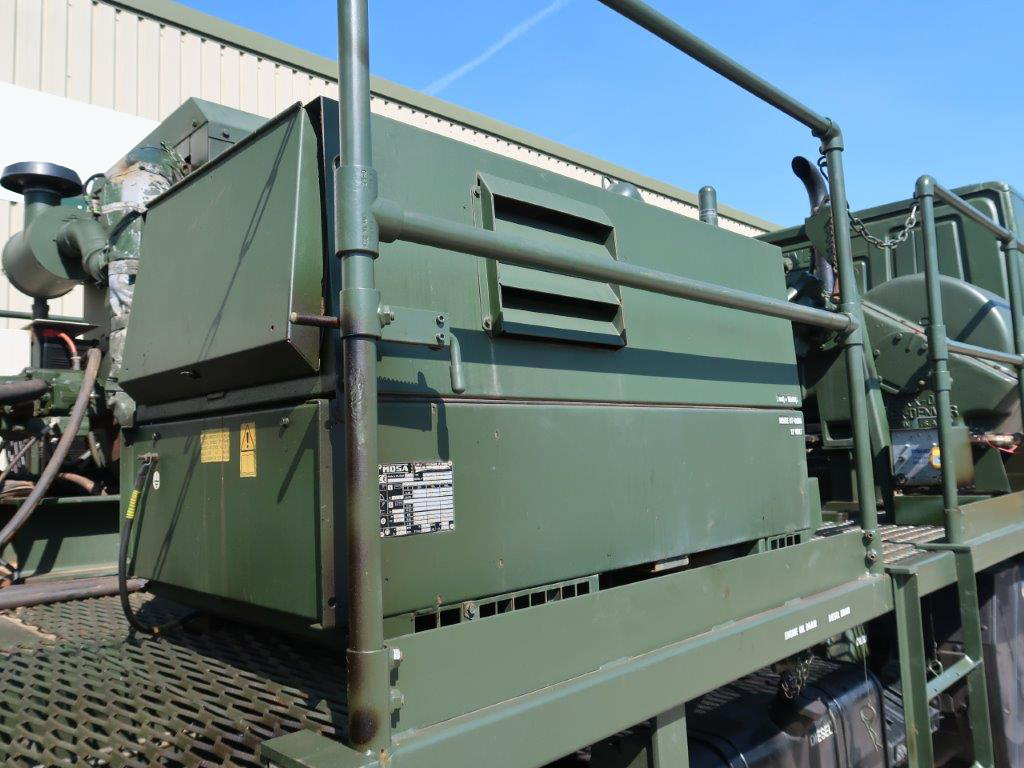

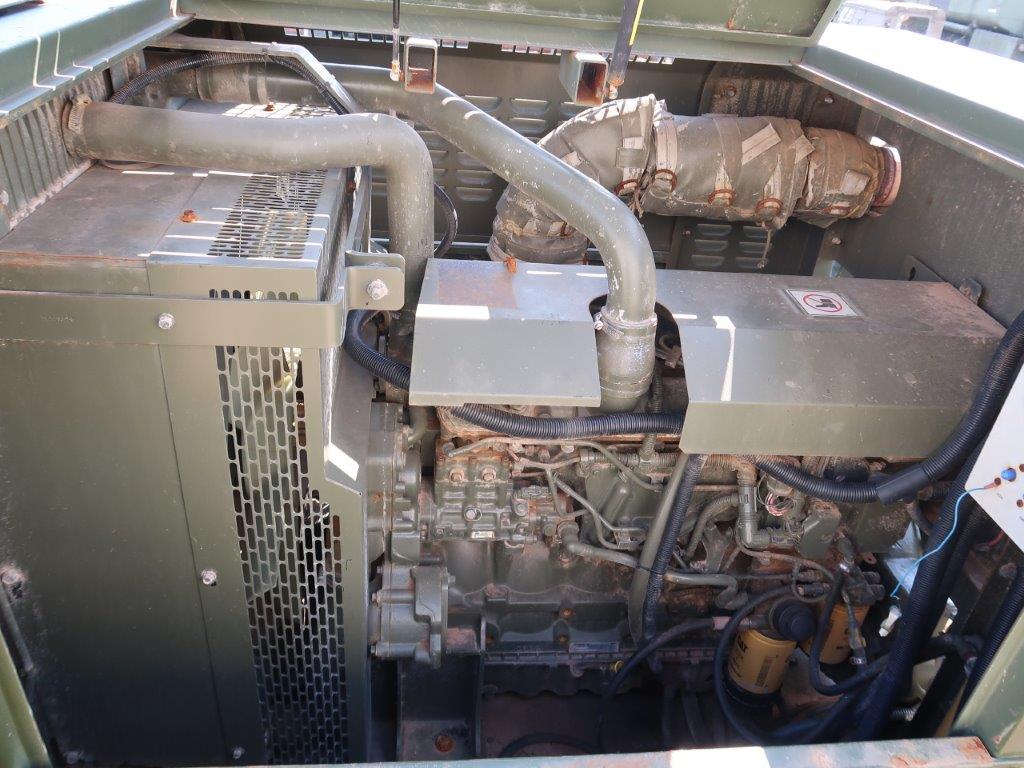

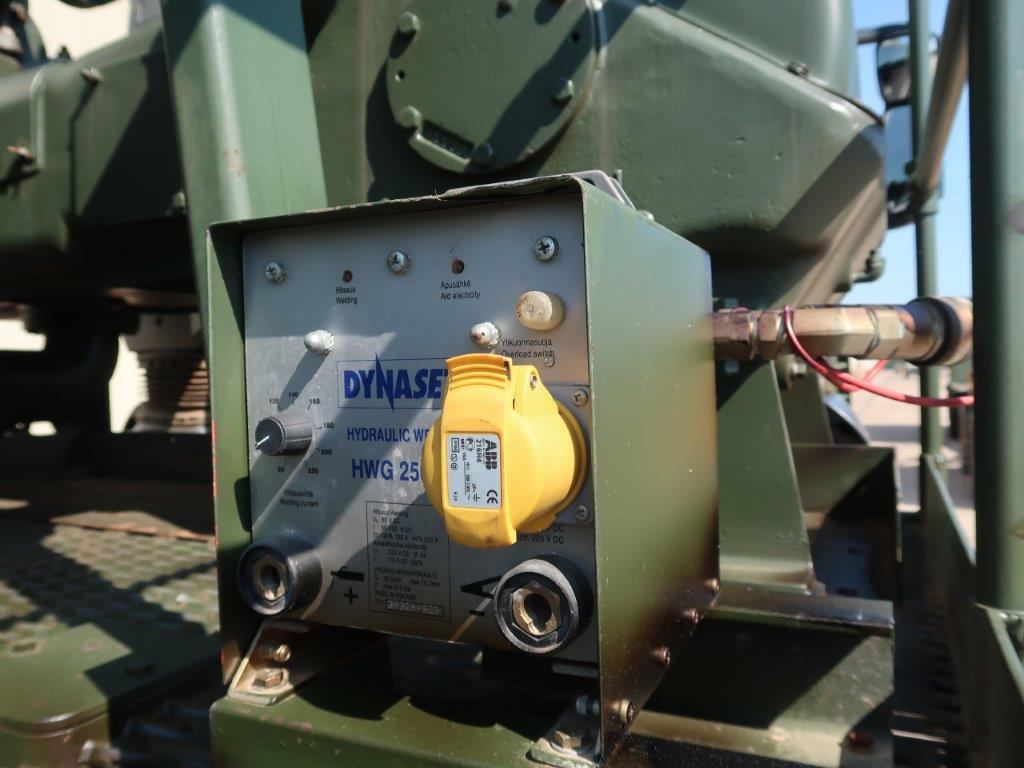

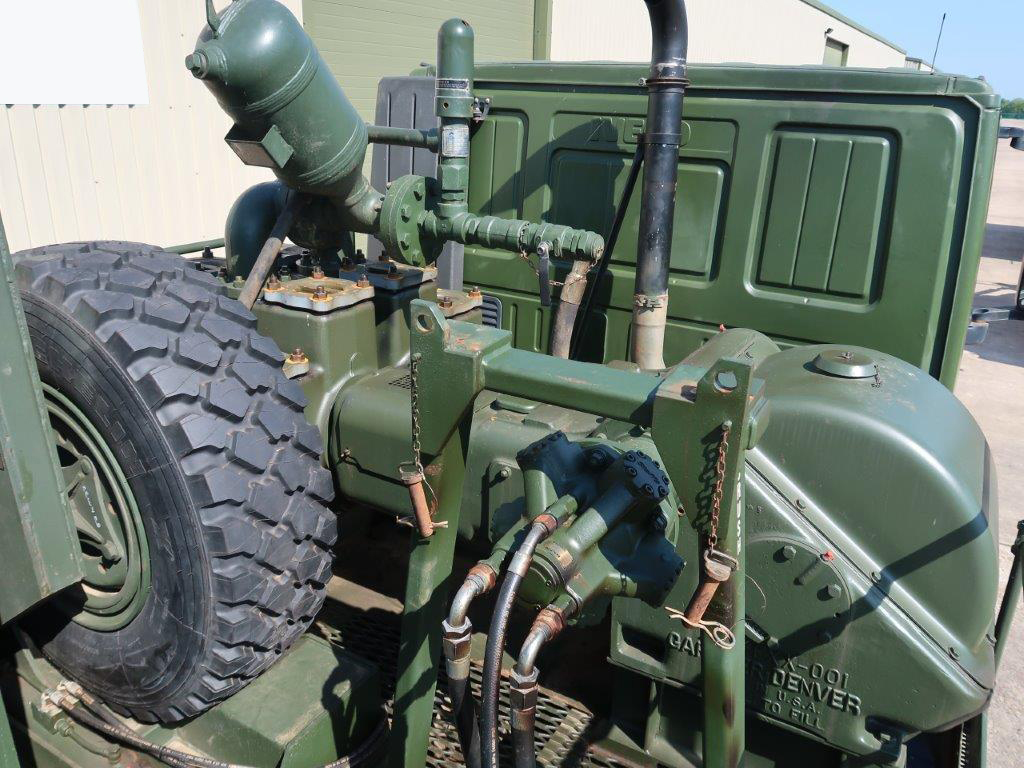

The system incorporates a Gardner Denver FXX Mud Pump, a Water/Foam injection pump, an Mosa 10 KVA diesel Electrical Welder/Generator, CAT C6 Hydraulic Power Pack, Dynaset Hydraulic welder.

This is a unique opportunity to purchase a full complete package of drilling equipment supplied to a high specification and had very little use to include the following;

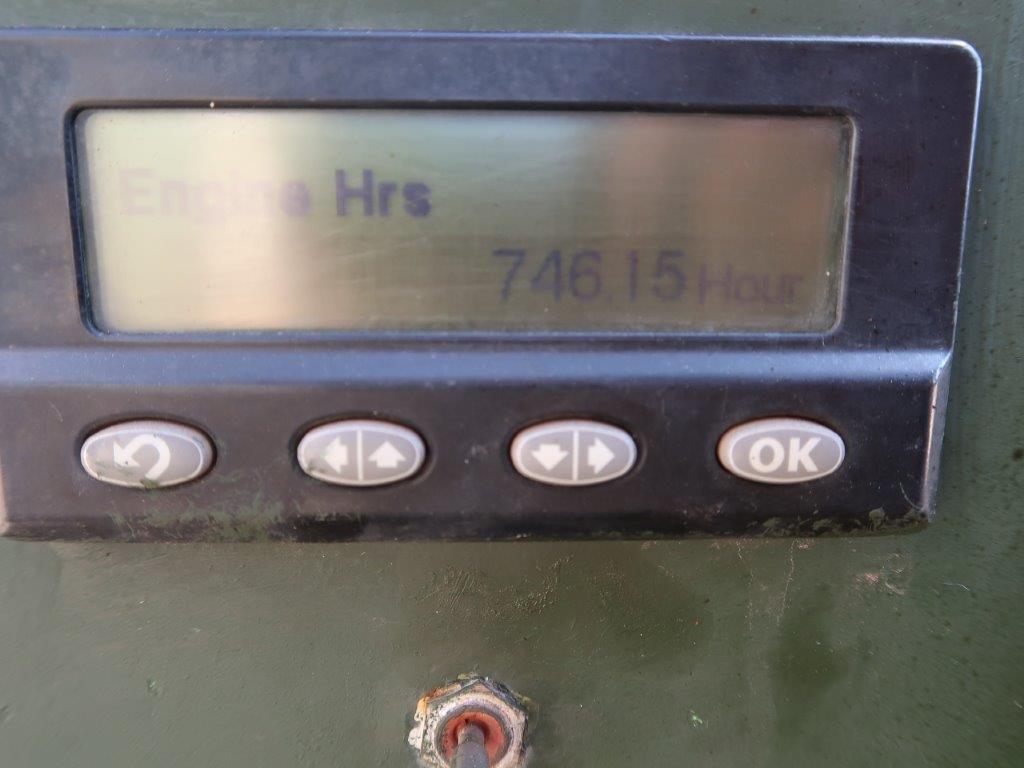

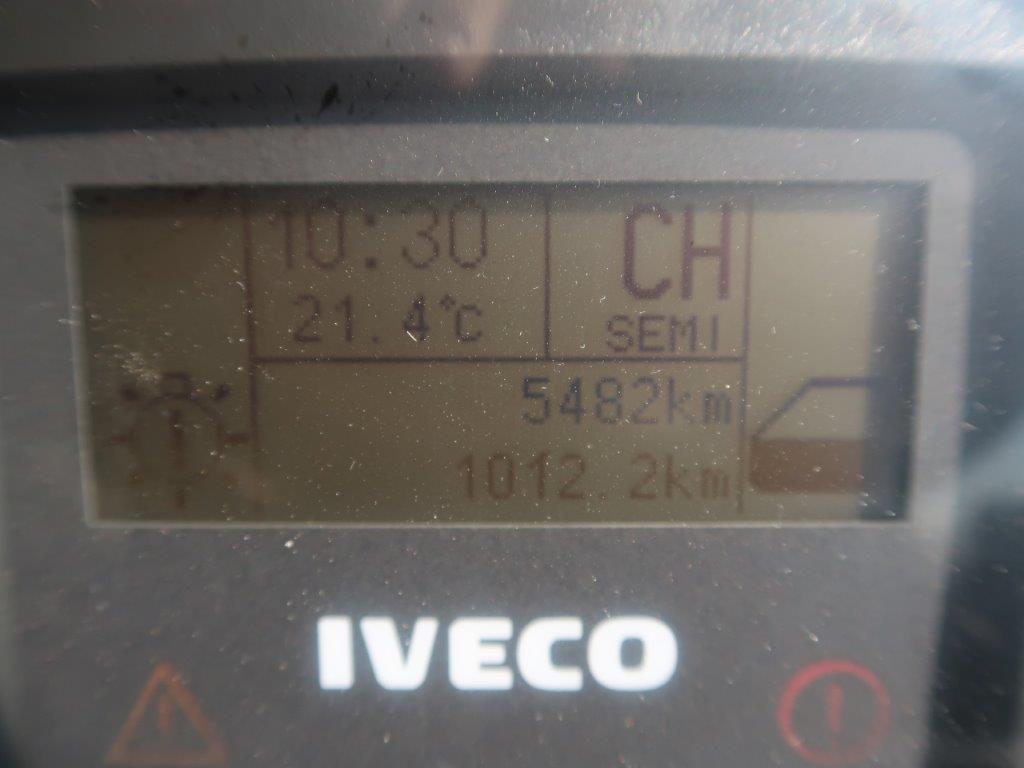

  • 1x Iveco 6x6 Dando 12.8 Rig with 5,482 driving kilometres and 746 Hours on the deck engine

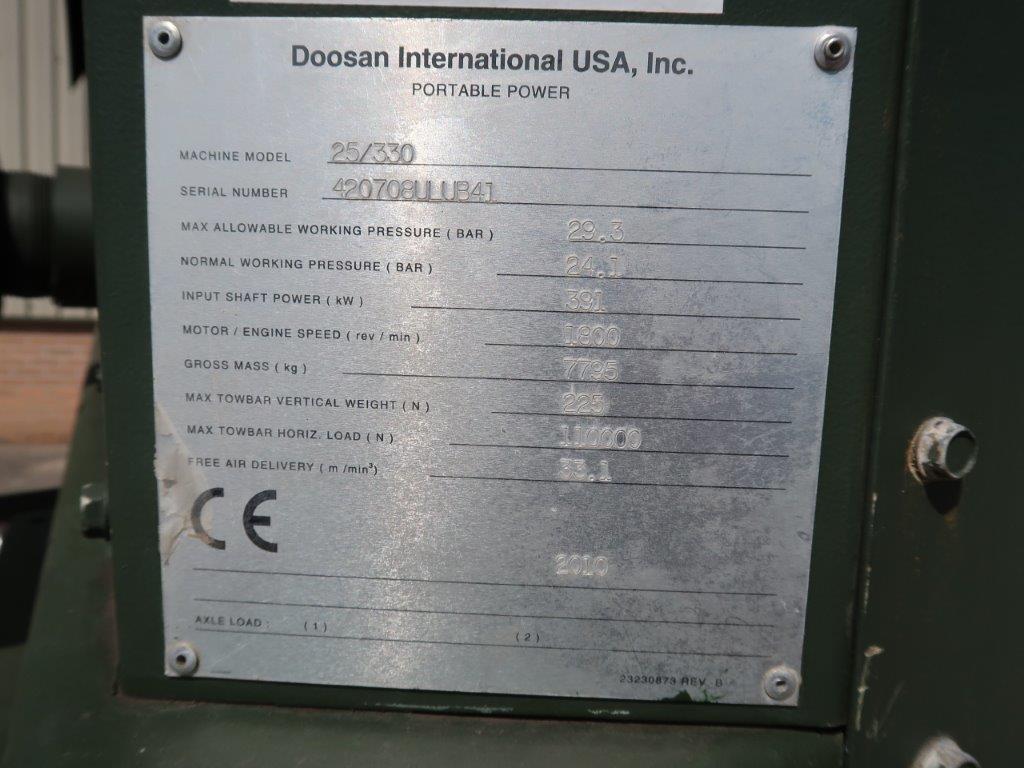

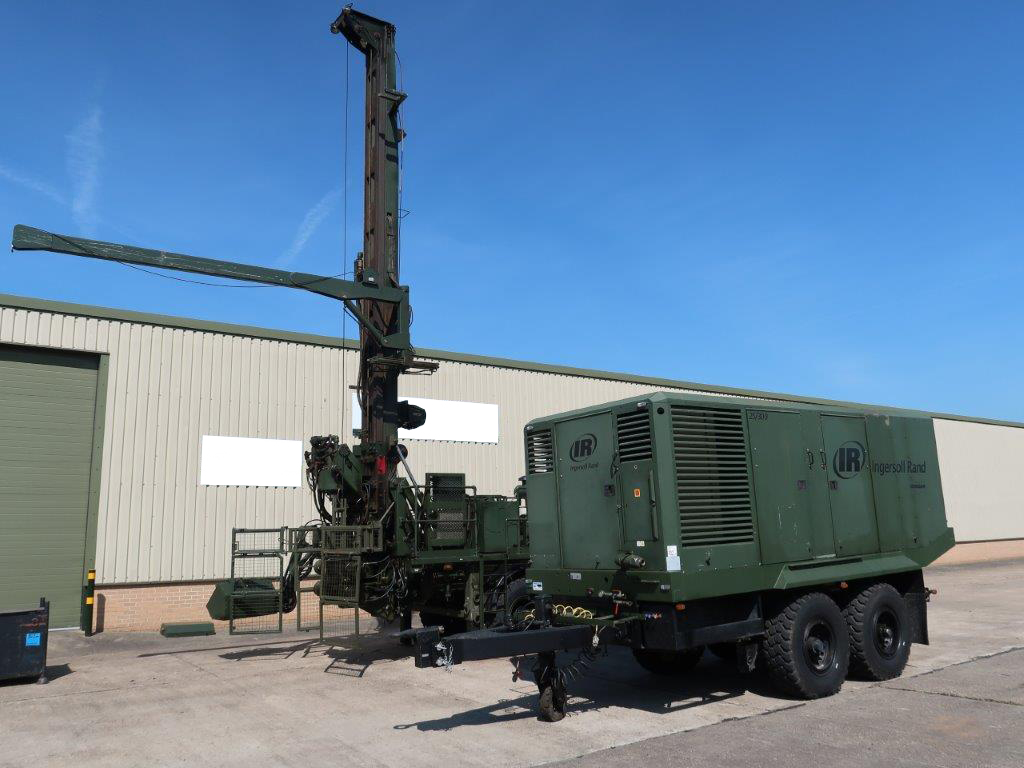

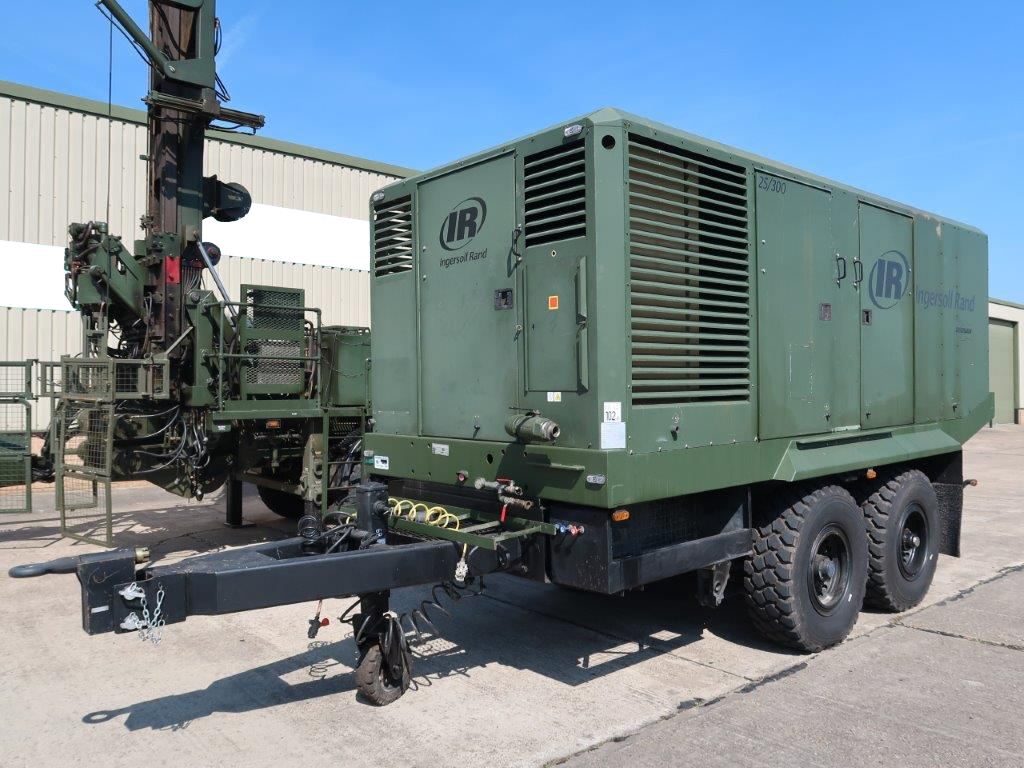

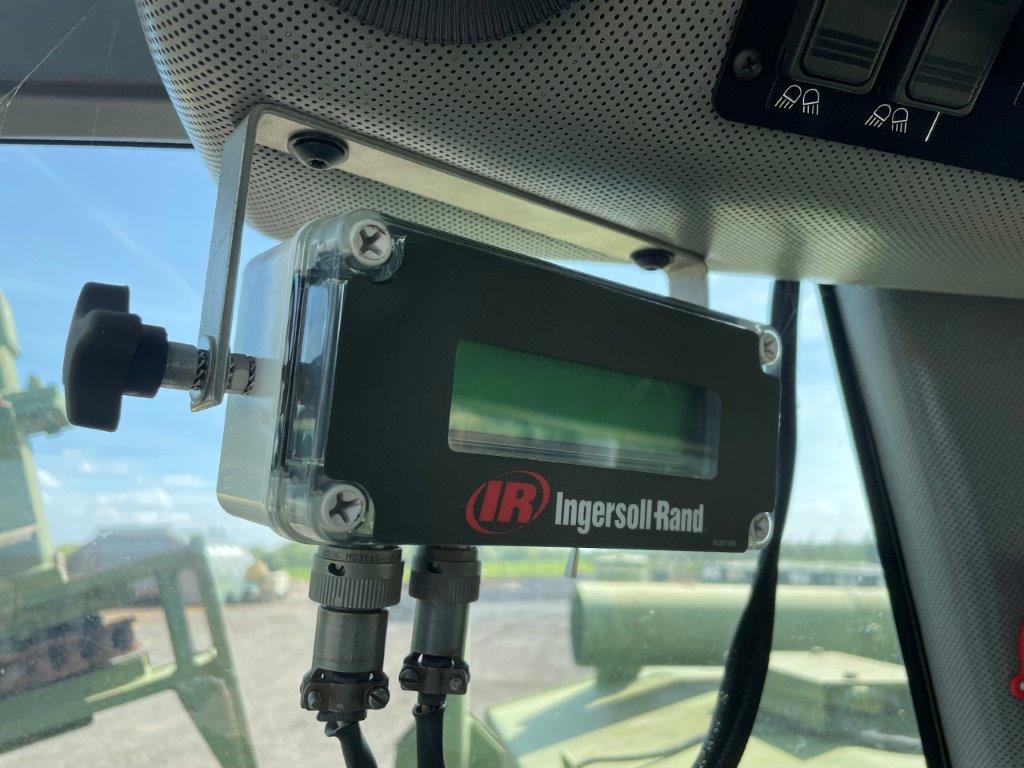

  • 1x Ingersoll Rand 25/330 Compressor

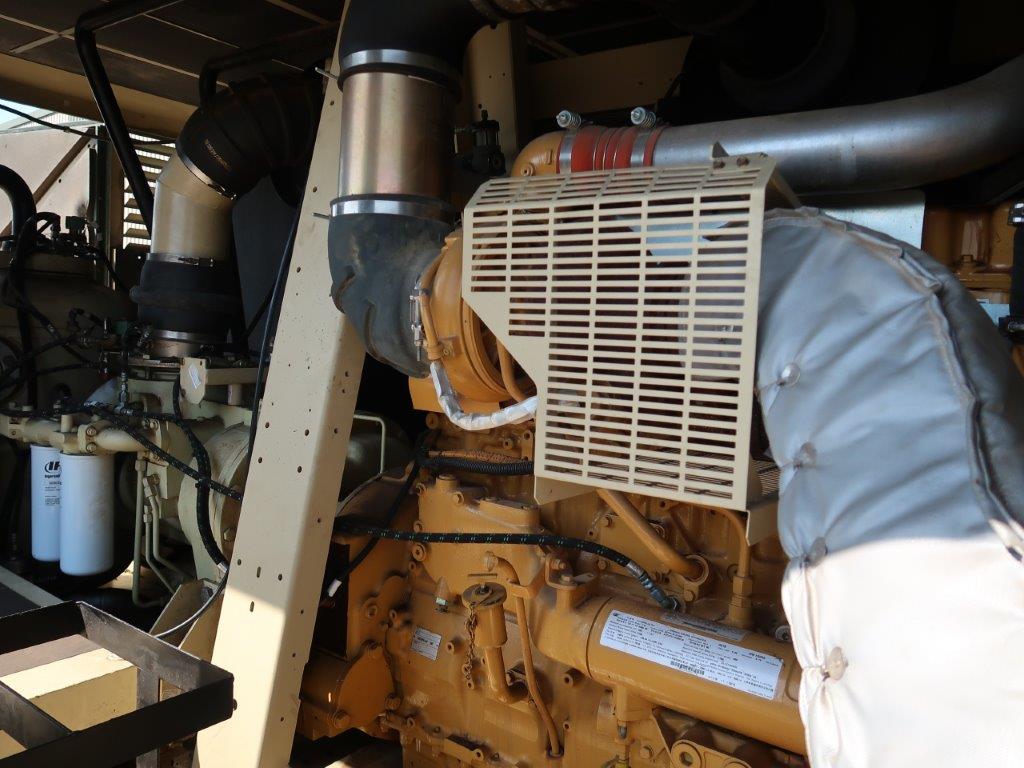

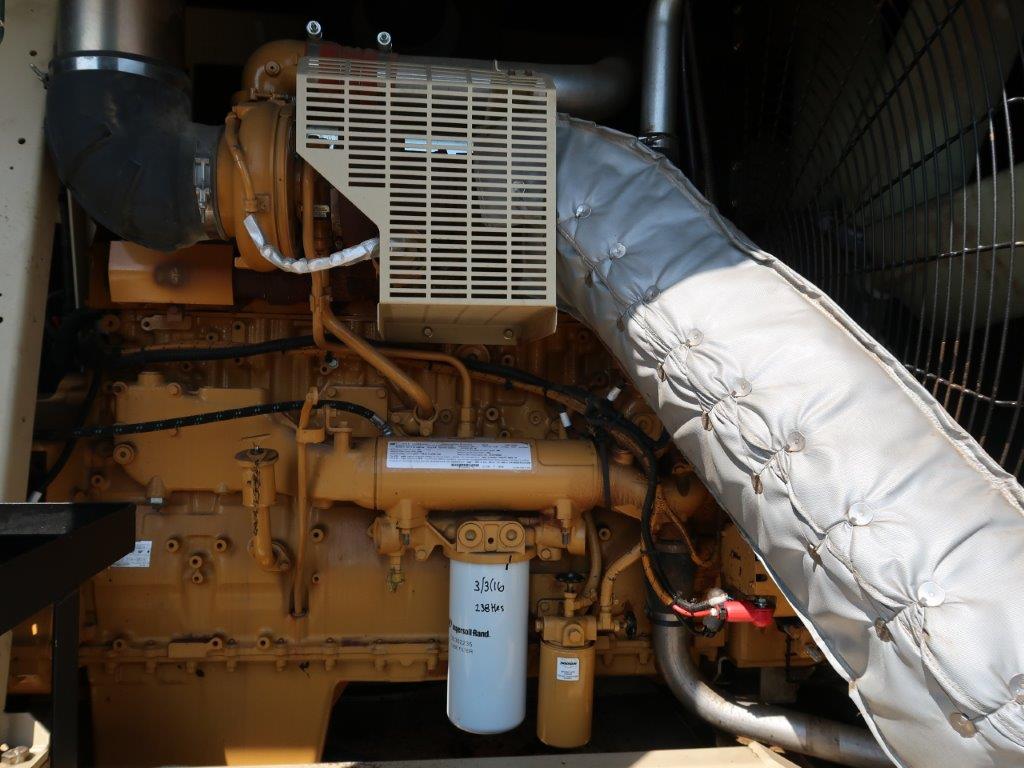

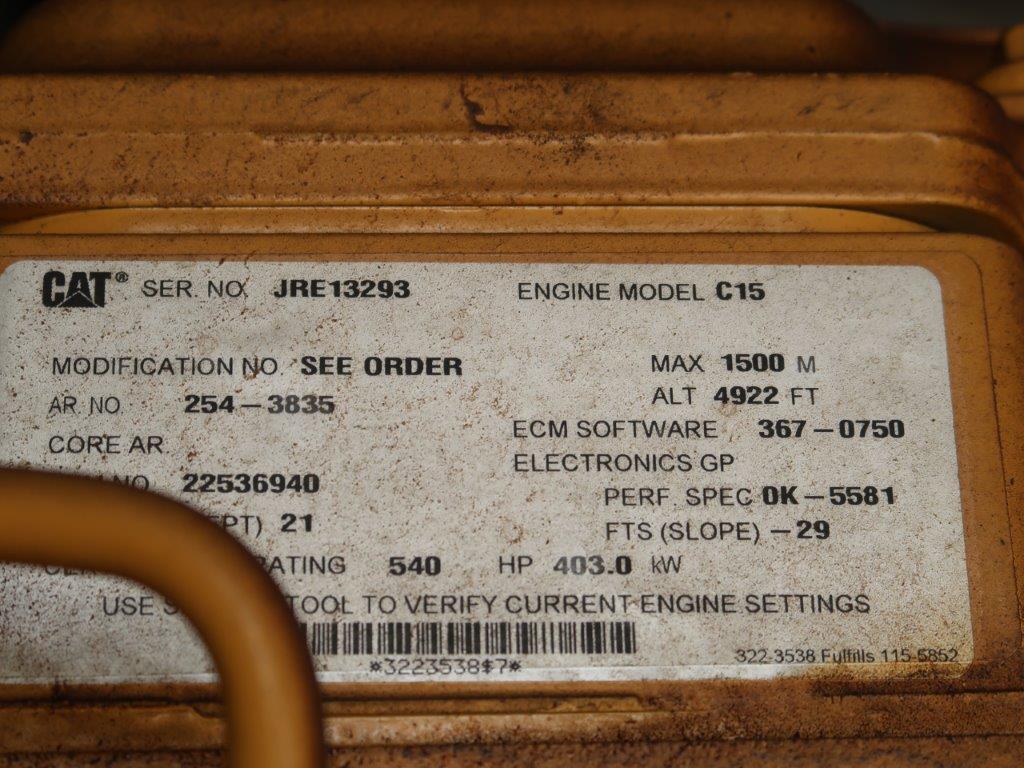

  • Caterpillar C15 540 HP Engine
  • Max Working pressure: 29.3 Bar
  • Normal Working pressure: 24.1 Bar
  • 1170 CFM
  • 7,795 KG
  • Mounted to a heavy duty off road Chieftain trailer
  • 239 Hours only
  • Dimensions:
  • 8.1x2.5x3.2

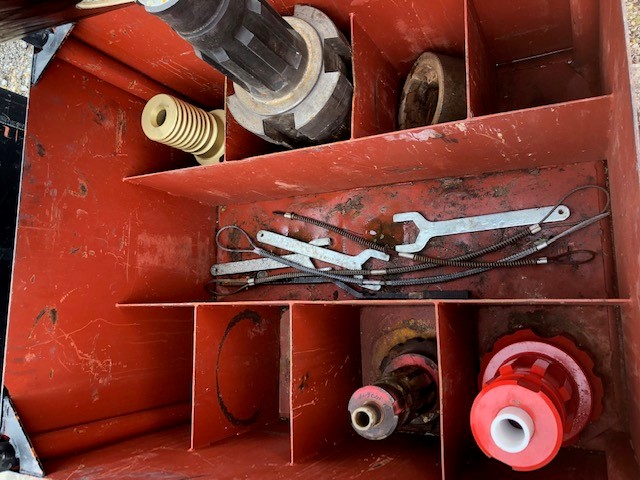

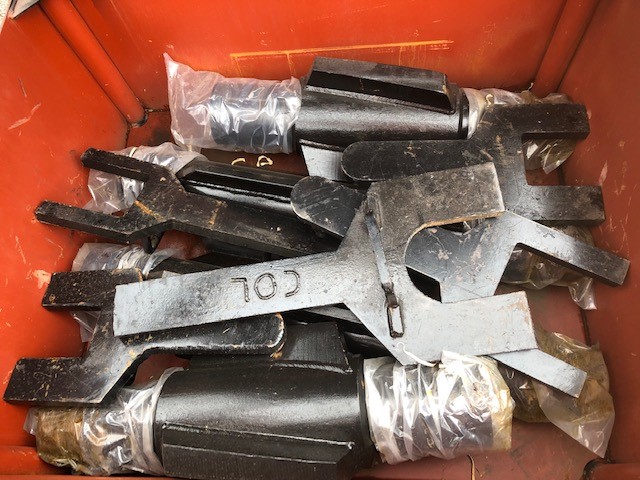

  • Drilling Equipment
  • Pallet 1

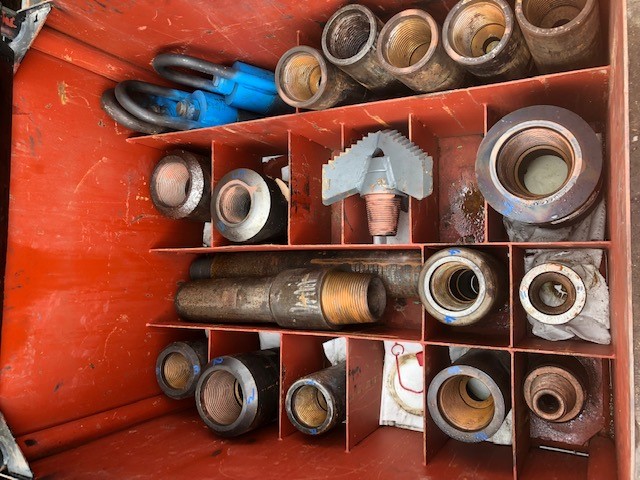

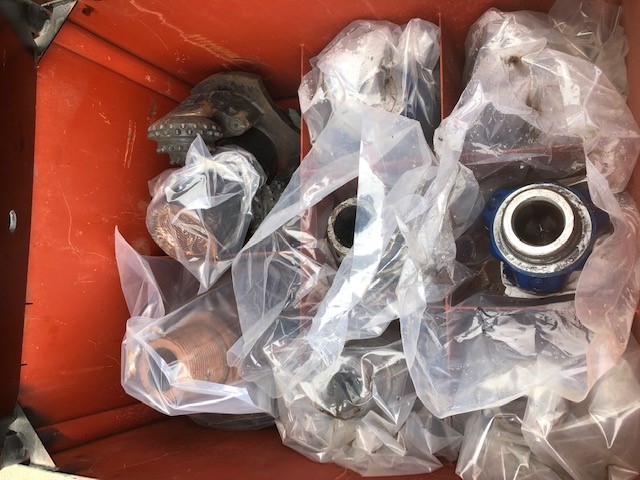

  • 3x Rod pull back adaptors
  • 17x Various Adaptors
  • Pallet 2
  • 8x Rock Roller Drill heads
  • Pallet 3
  • 4x Stabs
  • 4x Laykeys
  • Pallet 4

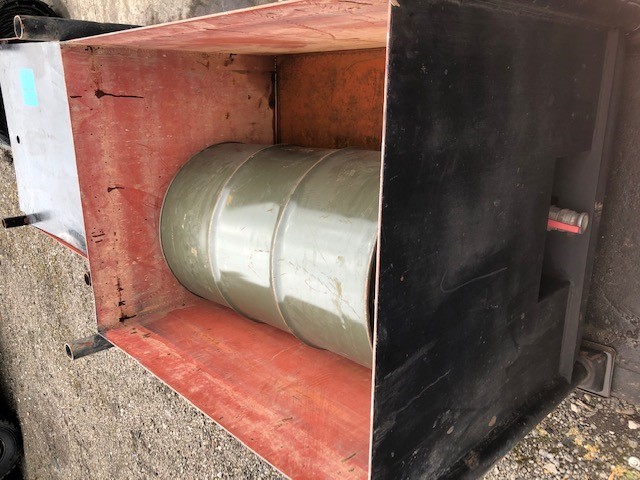

  • Lubrication Tank
  • Pallet 5

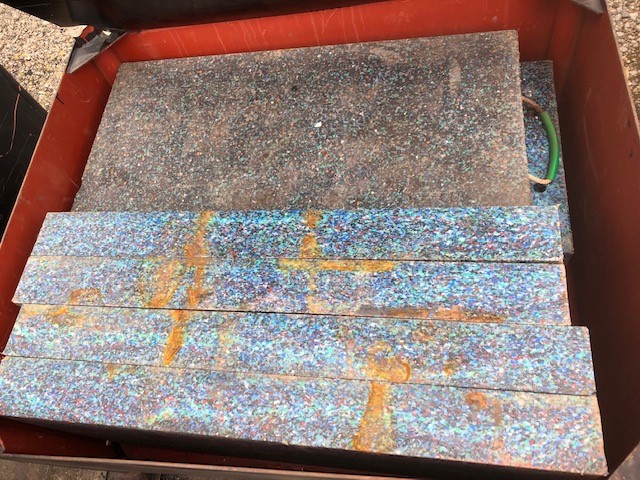

  • 8x Stabilizer Pads
  • Pallet 6
  • 4x Air Hammers
  • Pallet 7
  • 3x Rock Roller drill heads
  • 6x Collars
  • Pallet 8
  • Various adaptors and collars

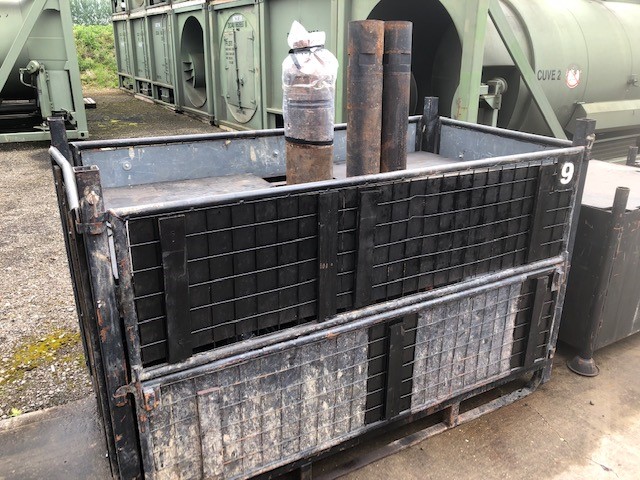

  • Pallet 9
  • Air Hammer
  • Adaptors
  • Hydraulic Hoses
  • Spares tools
  • Pallet 10

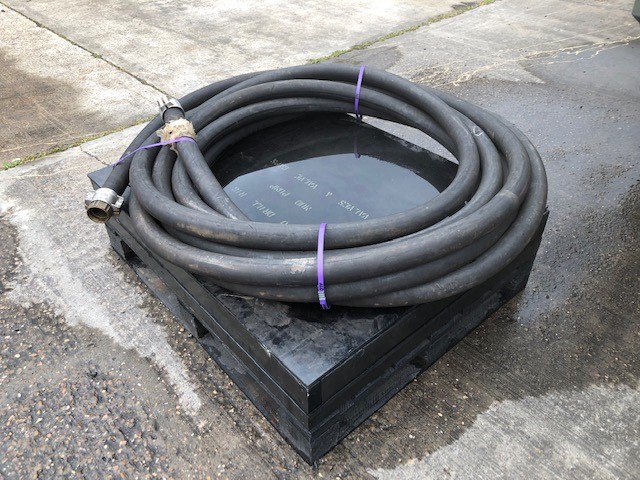

  • Air Line Hose
  • Pallet 11
  • 40x Drill Rods
  • CATEGORY Drilling Rig
    MANUFACTURER Iveco
    ENGINE 450HP
    GEARBOX Automatic
    TYRES 395/85R20
    ELECTRICS 24v
    L x W x H 10.5 M x 2.6 M x 3.7 M
    HOURS / MILEAGE 5482 Km
    YEAR OF MANUFACTURE 2010
    EXPORT REQUIREMENTS ...more SIEL Licence Required
