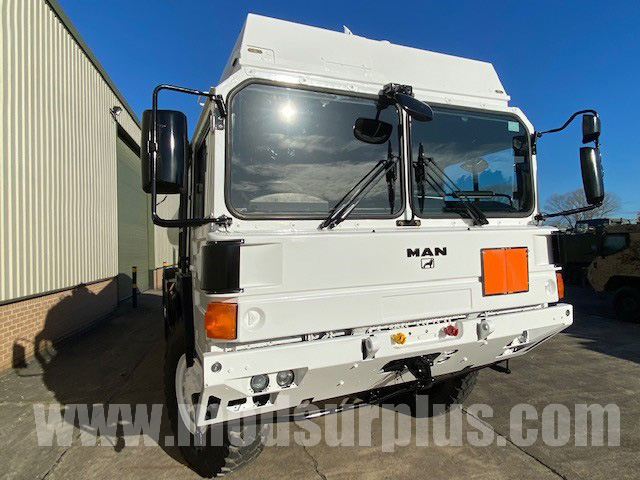

MAN HX60 18.330 4x4 RHD Tanker Trucks

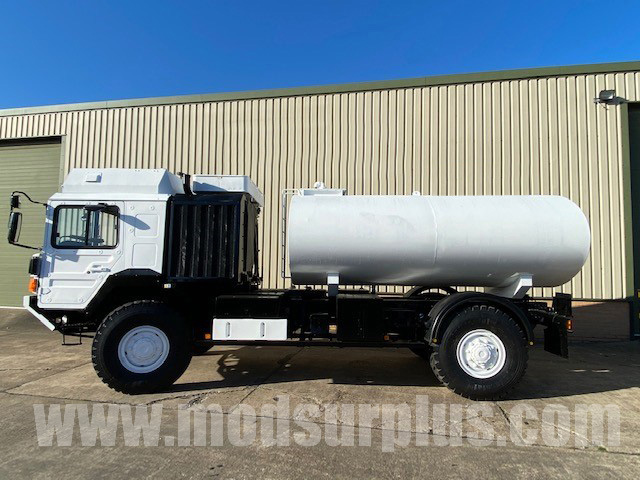

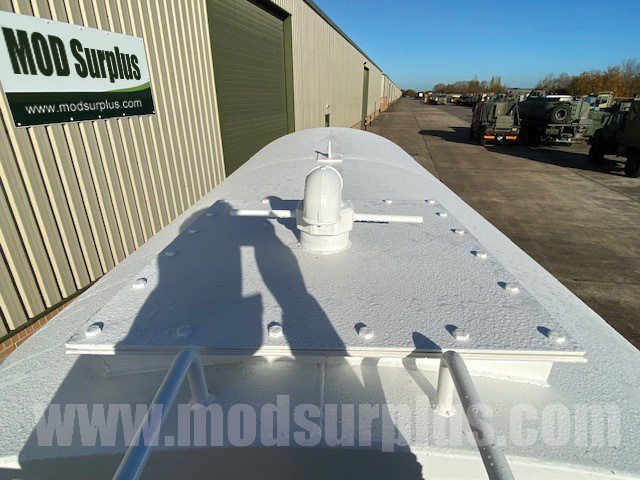

Fitted with a new 9,000 Litre approx steel tank suitable for water or fuel
Vehicle could be supplied with a engine driven pump or a PTO driven pump and fuel metre with retractable hose reel and nozzle
We can also supply these vehicles for dust suppression site vehicles with a rear discharge and spray plate
Engine: MAN turbocharged diesel engine, developing 326 hp
Gearbox: ZF 12-speed automatic gearbox
Payload 6 tons, Gross weight 18 tons
Suspension: Steal leaf springs front & rear
Air conditioned cab
The MAN HX60 is fitted with an all-steel solid modular cab. The same cab is used across the HX and SX ranges of military trucks. It provides seating for driver and two passengers. There is an observation hatch on the roof. It was used to mount a light machine gun. Separated windscreens are designed for easier replacement. Also these are installed vertically in order to minimize light reflections.
The MAN HX range is based on the automotive components of commercial MAN TGA heavy truck range. The HX60 is powered by a MAN turbocharged diesel engine, developing 326 hp. It meets EURO IV emission requirements. The engine is located behind and under the cab. This feature allowed to reduce height of the vehicle. Also such location protects damage of the radiator or blockage with mud. All models are fitted with ZF 12-speed automatic gearbox. A central tyre inflation system is proposed as an option. Without preparation the MAN HX60 fords water obstacles up to 1.2 m deep. With preparation it can ford up to 1.5 m. Vehicle can operate in climatic conditions, ranging from -32°C to +50°C. The MAN HX60 can be airlifted by the C-130 Hercules cargo aircraft with little preparation.
Fleet and Governmental orders welcome
